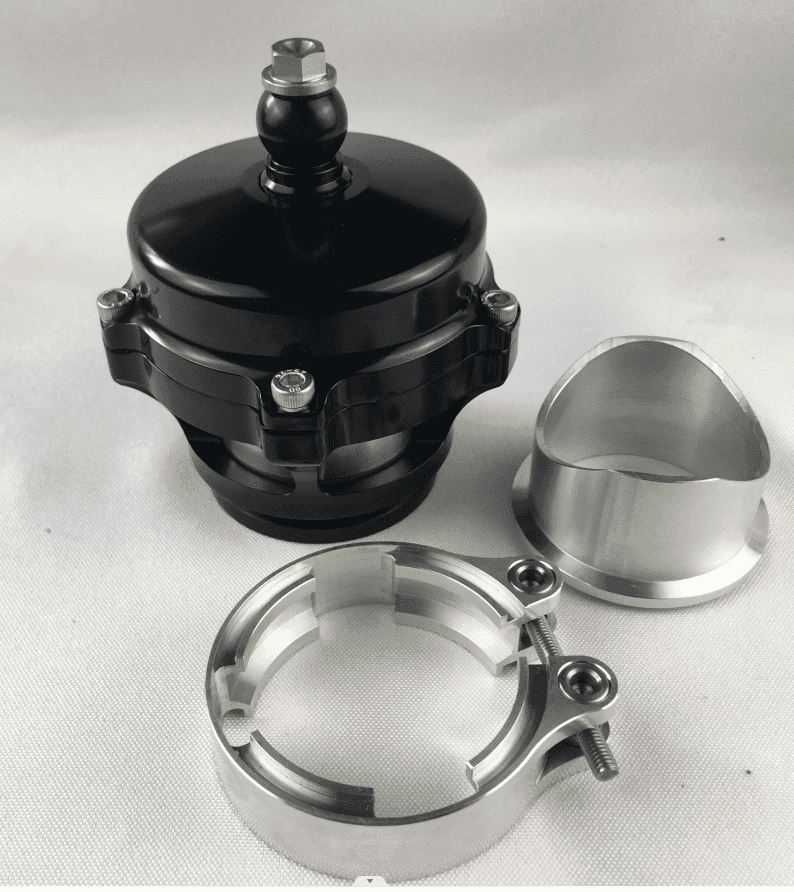

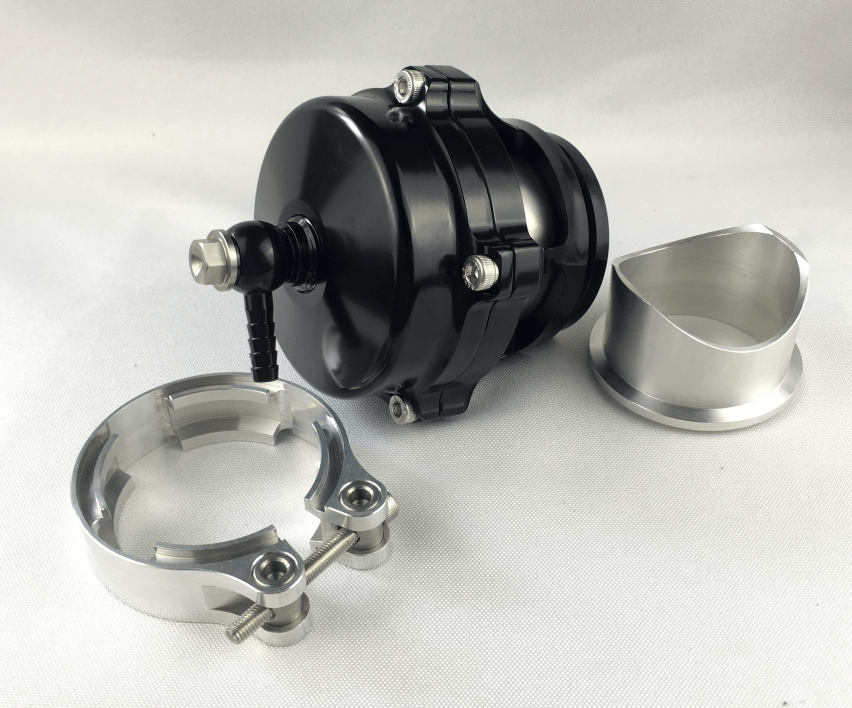

50 MM BLOW OFF VALVE
1.This BOV use the same spring, the spring is a bit more compressed in the BJRBT02565, which is why the spring rating is one PSI higher
2.The supercharge spring is specifically for supercharged car only; if you have a quick spooling turbo
it can actually push the valve open briefly before the charge gets to the mainfold,dumping boost
3. BOV's need a 1/4" innner diameter DIRECT source to the mainfold; smaller lines can cause delays in response time
SPRING PRESSURE HAS TO NOTHING TO DO WITH BOOST,ONLY VACCUM
| Part Number | PSI(SPRING) | SPRING COLOR | USE IF VACUUM AT IDLE IS BETWEE |
| BJRBT02565-2P | -2 | Green | supercharger only |
| BJRBT02565-6P | -6 | Black | -8in/hg to -11in/hg |
| BJRBT02565-8P | -8 | White | -12in/hg to -15in/hg |
| BJRBT02565-10P | -10 | Silver | -16in/hg to -19in/hg |
| BJRBT02565-11P | -11 | Yellow | -20in/hg to -21in/hg |
| BJRBT02565-12P | -12 | Red | -21in/hg to -23in/hg |
